Database
PostgreSQL on Arke combines the power and reliability of the PostgreSQL relational database management system with the flexibility and scalability of the Arke framework, providing developers with a robust solution for storing, managing, and querying data in their applications. It's a powerful open-source database known for its advanced features, SQL compliance, and support for ACID (Atomicity, Consistency, Isolation, and Durability) transactions, making it an ideal choice for a wide range of applications.
PostgreSQL
Follow the postgress installation section to init it.

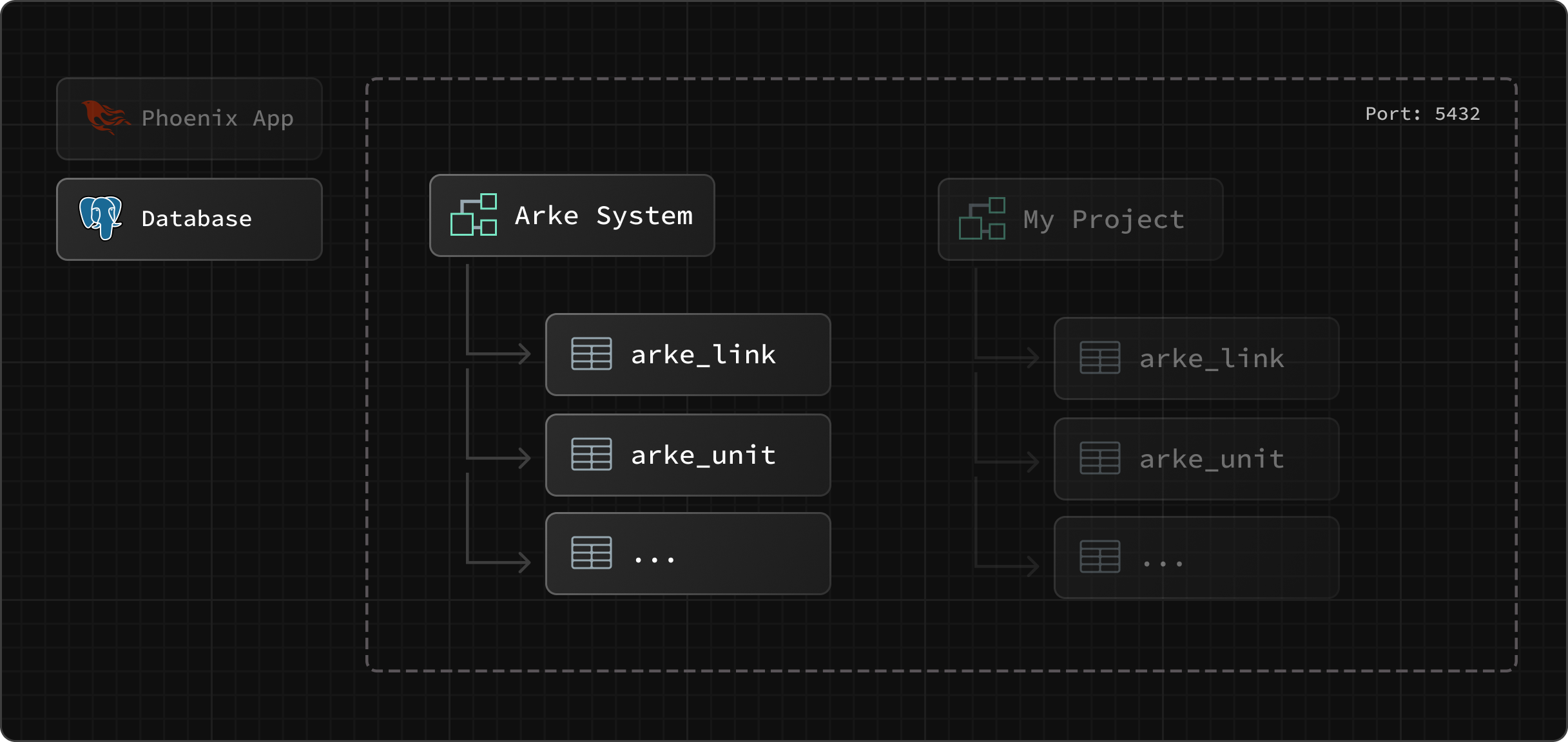

When Arke application is initialized a set of seeds data are stored on Database to manage Arke application. This system
informations are stored on a special Schema named Arke System.
Arke tables
Arke tables have a specific columns definition, on this section we'll discover our data are managed.
Arke Unit

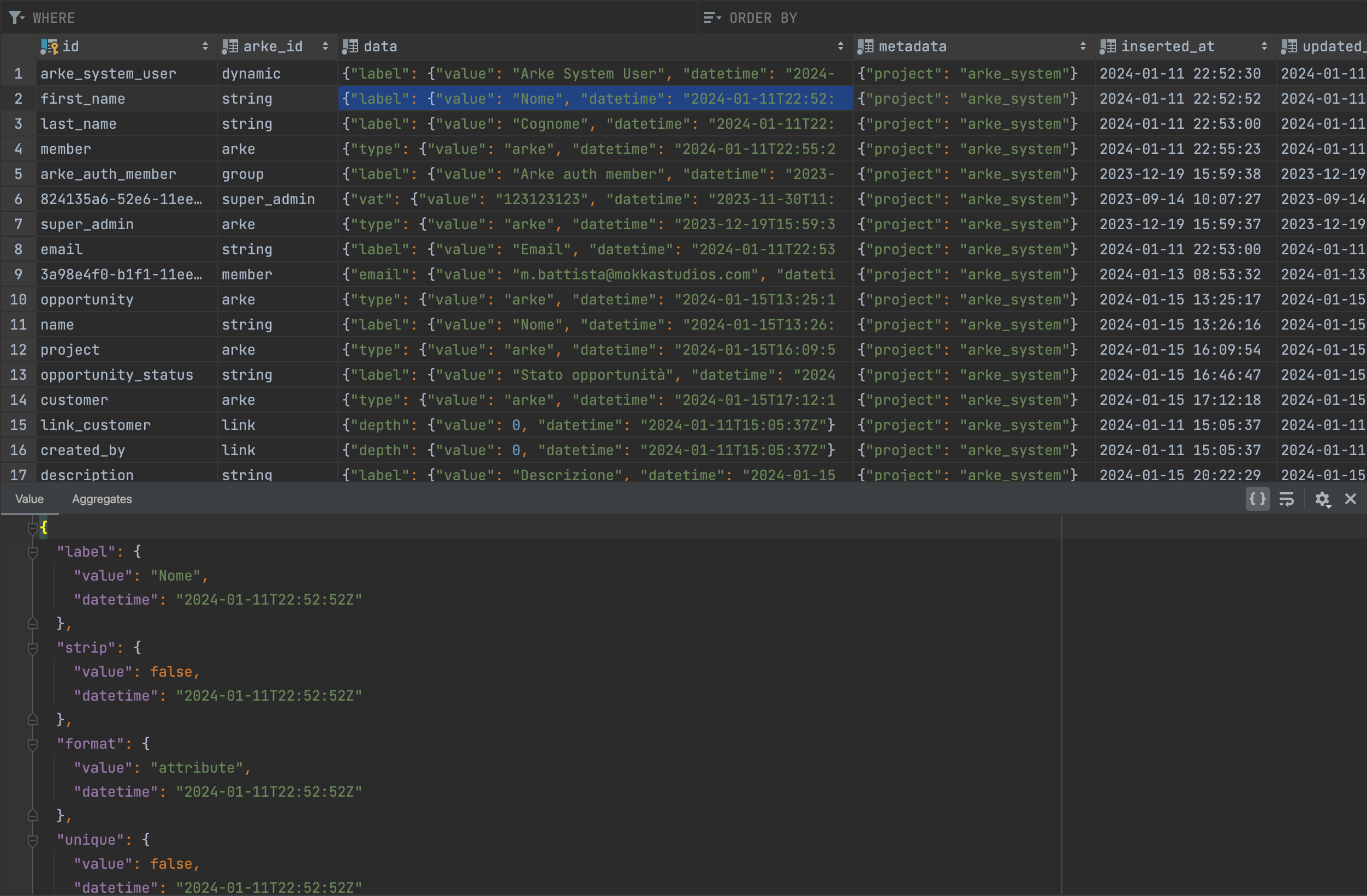

The arke_unit table contains all stored units of your application. On Database view you can see that also parameter
are stored on this table, this is because also parameter are units.
Parameters are unit that use as arke_id the type of data. For example the string type is an Arke with pre-configured
parameters
| Column name | Description |
|---|---|
| id | identifier - can be a recognizable key or autogenerated (UUID) |
| arke_id | arke identifier (arke if is the primitive) |
| data | JSON format parameters list with value and datetime. |
| metadata | JSON format additional system information |
| inserted_at | ISO Datetime string of unit creation |
| updated_at | ISO Datetime string of unit update |
Arke Link

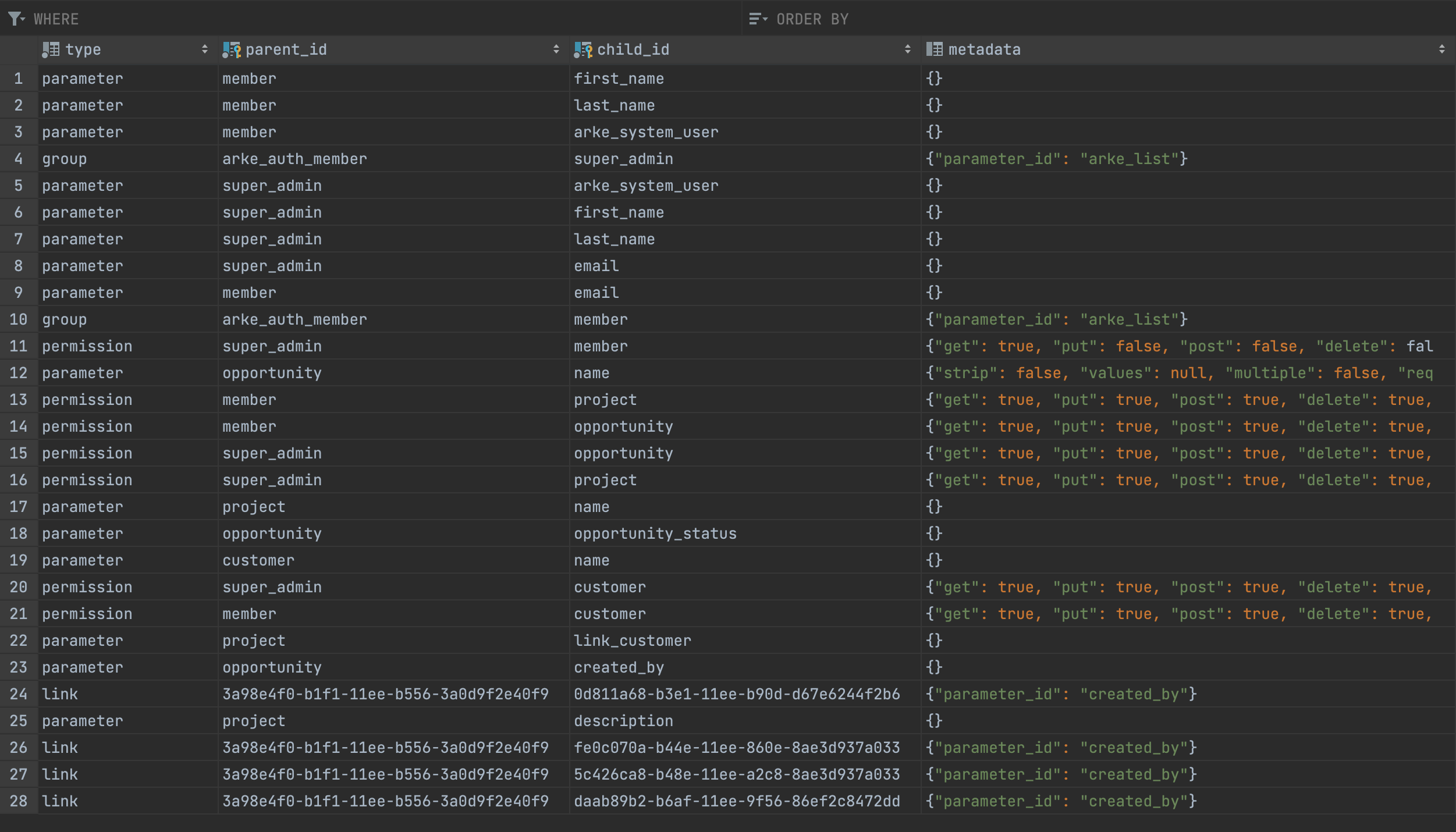

The arke_link table contains all information of links. On Database view you can see that also parameters are linked
with a parent/child relations with arke, this is created when we associate a parameter on one arke.
Parameters are child link of one arke
| Column name | Description |
|---|---|
| type | type of connection could be parameter, group, permission relation or a custom link |
| parent_id | arke id parent of relation |
| child_id | arke id child of relation |
| metadata | JSON format additional overridable system information, for example on permission we can see the methods permission defitions |
